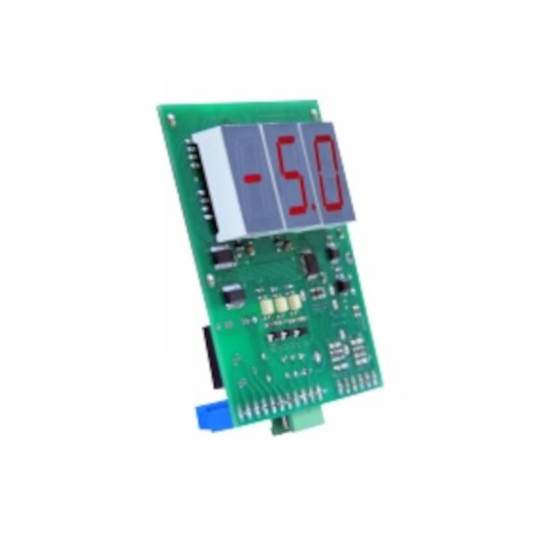

KBL110RST is a special device for water cooling machines. It’s a compact controller for OEM manufacturers. It is a 1 relay electronic thermoregulator designed to control static off-cycle defrosting (to stop compressor). The device has three digital inputs for compressor thermic, high pressure and low pressure. The user interface consists of a LED display with membrane overlay with special function icons and 4 buttons. Installation is by back-panel, with threaded studs and overlay at the front and guarentees flush mounting.
Applications: Water cooling machines
Main Characteristics:
Cooling control of compressor
Phase failure protection for compressor
Off-cycle defrosting (stopping compressor)
Defrosting can START/STOP manually
Digital Input protection for Compressor Thermic, High Pressure and Low Pressure
Decimal point display and control of temperature
LED Display (25mm 3 digits) with membrane overlay with special icons and 4 keys user interface
Plug-in terminal blocks for ease of cabling
Back-panel mounting with threaded studs and custom brand overlay at the front
